Electrical Measuring Instruments

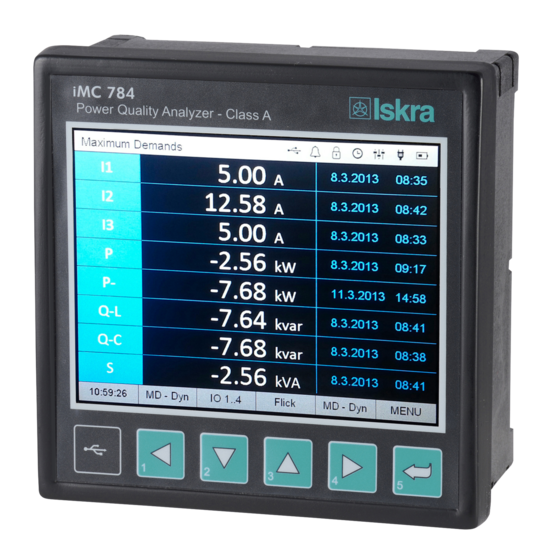

iMC 784 Advanced Power Quality Analyzer
Power Quality Analyzer – iMC784 is a perfect solution for permanent Power Quality monitoring.

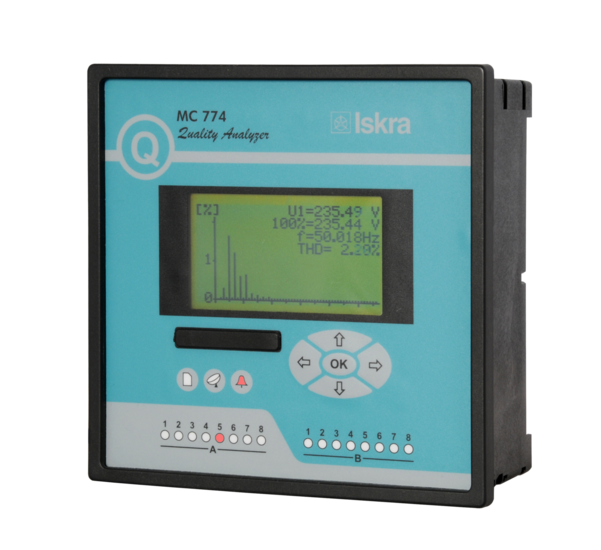

Iskra MC 774 Quality Analyzer - Class A
Power quality analyzer MC774 is intended for detection of local power quality deviations.

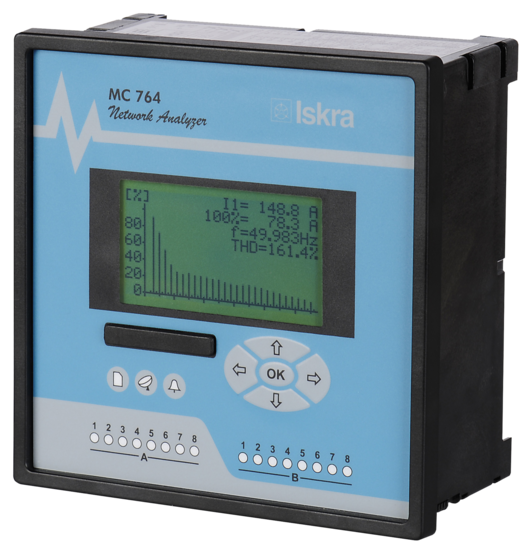

Power monitoring device MC 7x4
Power monitoring device MC7x4 is designed for environments where beside measurement of three-phase electrical power network additional analogue or digital measurements/controls must be made without additional hardware (PLC, OPLC).

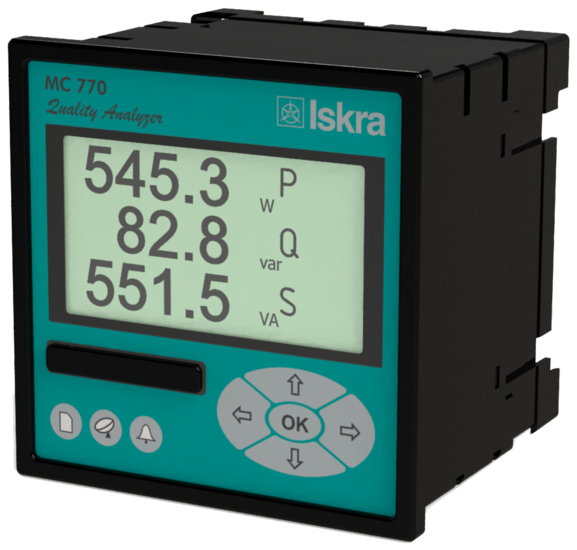

Power monitoring device MC 7x0
This power monitoring devices are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network in electricity distribution and energy production companies, utilities, dwellings, industry, …

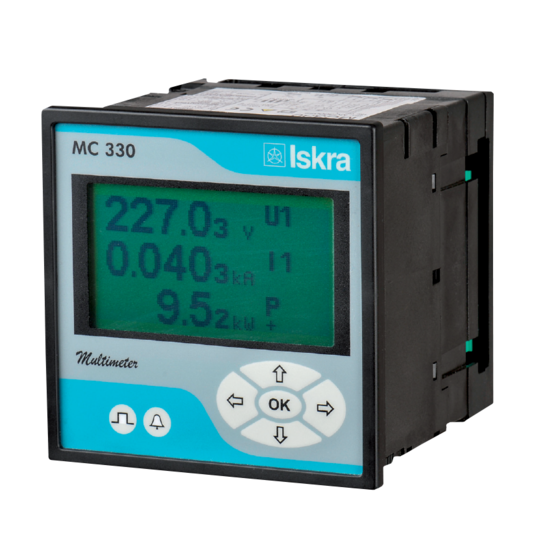

Power monitoring device MC 3x0
Power monitoring devices are intended for measuring, analysing and monitoring of single-phase or three-phase electrical power network of electricity distribution and energy production companies.

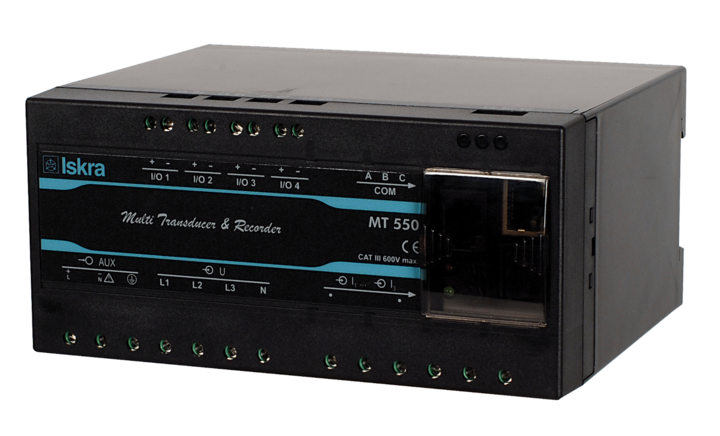

Measuring transducers MT/UMT 5x0
Measuring transducers MT/UMT 5×0 are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network.

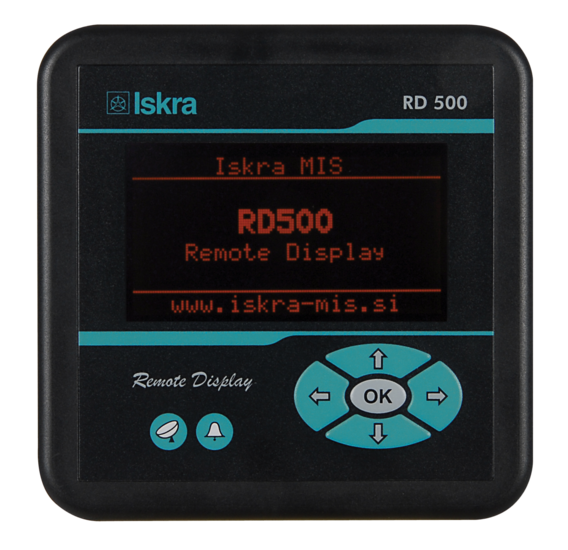

RD 500 - Remote Display
Remote display is very useful for a quick look-up to all measured parameters or to set up the (U)MT5xx measuring transducers without the PC.

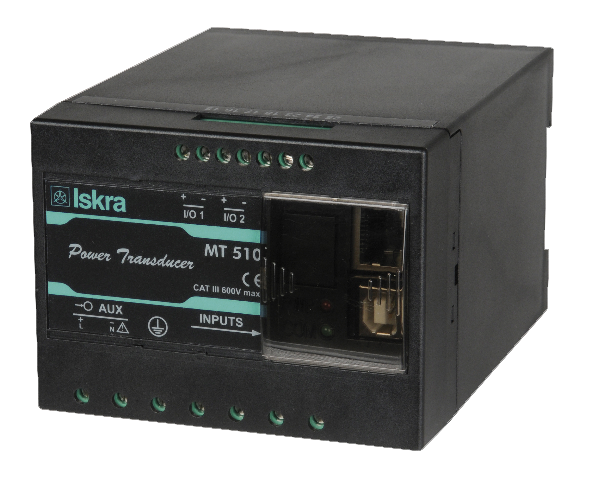

Measuring transducers MT/UMT 51x
Measuring transducers MT 51x are intended for measuring and monitoring single-phase electrical power network.

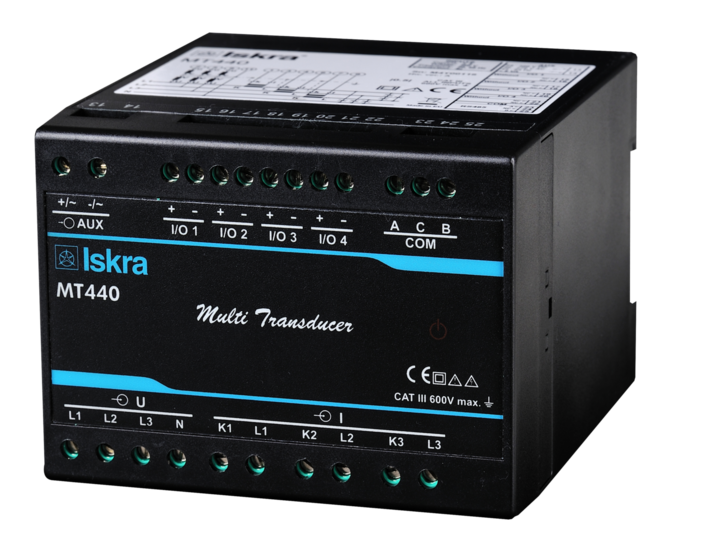

Measuring transducers MT 4xx
Measuring transducers MT 4xx are intended for measuring and monitoring single phase or three-phase electrical power network.

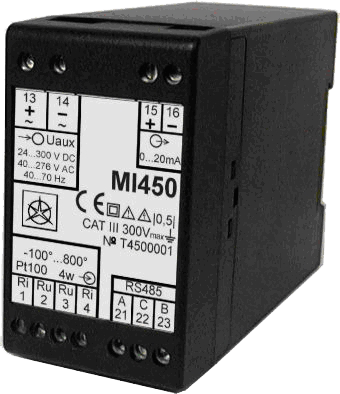

Measuring transducers MI 45x
Measuring transducer of family MI 45x are designed for use in industrial process for conversion of DC current in to appropriate DC current or DC voltage signals.

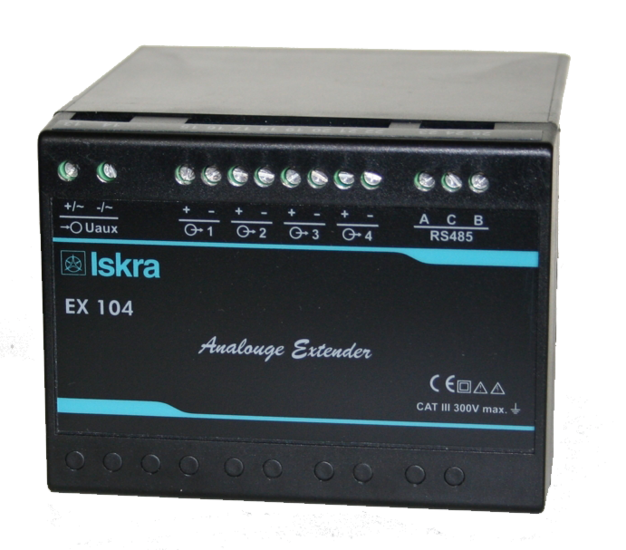

Analogue Extender EX104
Programmable analogue extender EX104 generates 4 electrically insulated, load independent analogue output signals (DC voltage or DC current).

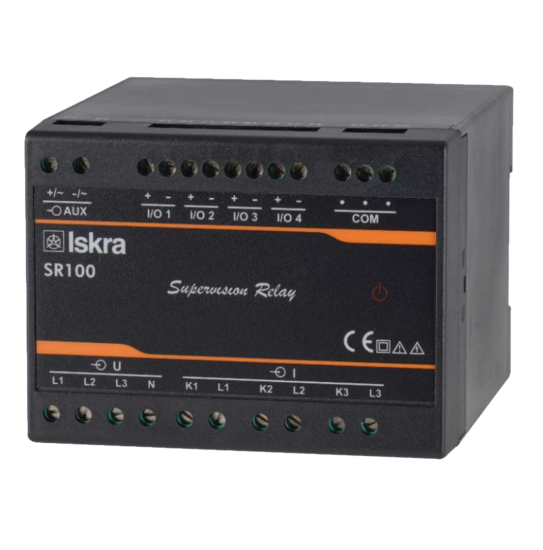

Supervision Relay SR100
SR100 Supervision Relay is a intended to monitor and protect electrical equipment against common faults on Single-Phase or Three-Phase electrical power networks.

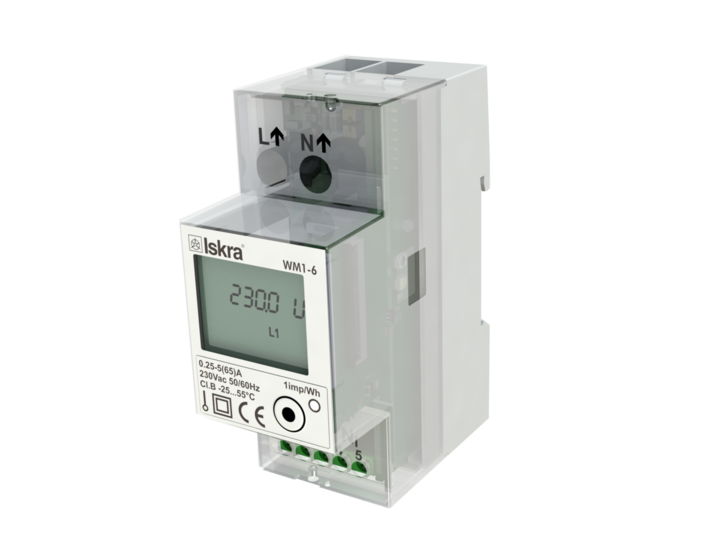

Energy meter WM1
Energy meter WM1 reduces energy consumption and decreases your electricity costs.

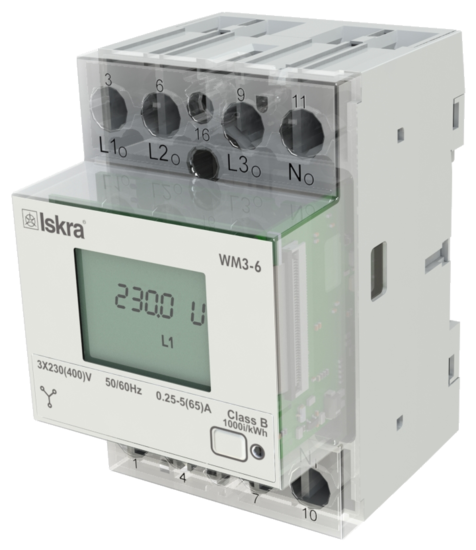

Energy meter WM3x6
Energy meter WM3x6 and WM3M6 (MID certified) are intended for energy measurements in three-phase electrical power network and can be used in residential, industrial and utility applications.

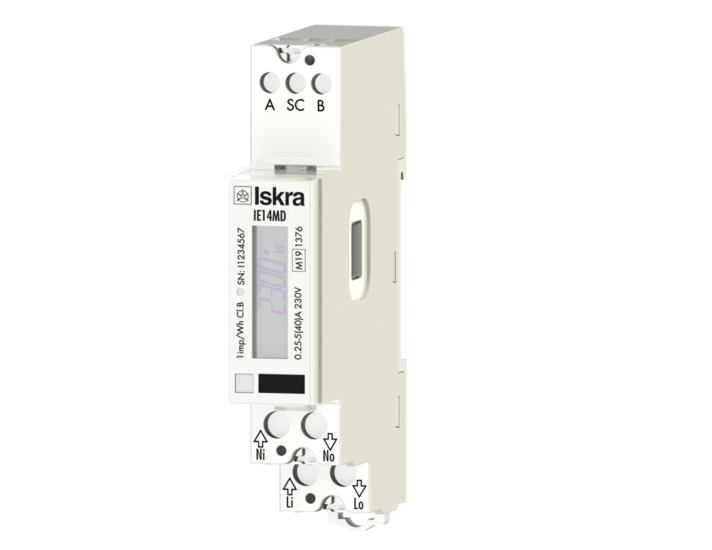

Energy meter IE14xx
Energy meters IE14xx (also MID certified models) are intended for energy measurements in single-phase electrical power network and can be used in residential, industrial, utility and EV-charging applications.

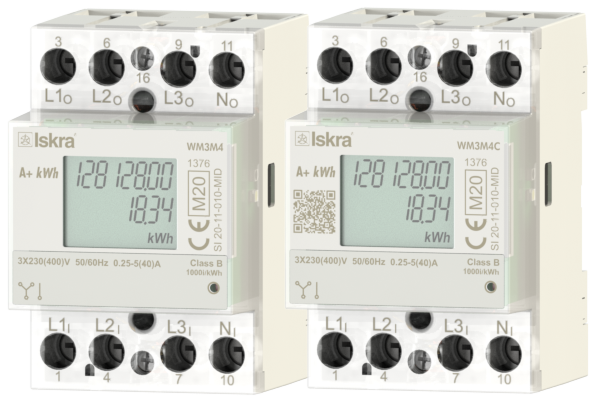

Energy meter WM3M4 & WM3M4C
The WM3M4 & WM3M4C energy meters are MID certified meters, intended for energy measurements in the three-phase and single-phase electrical charger stations.

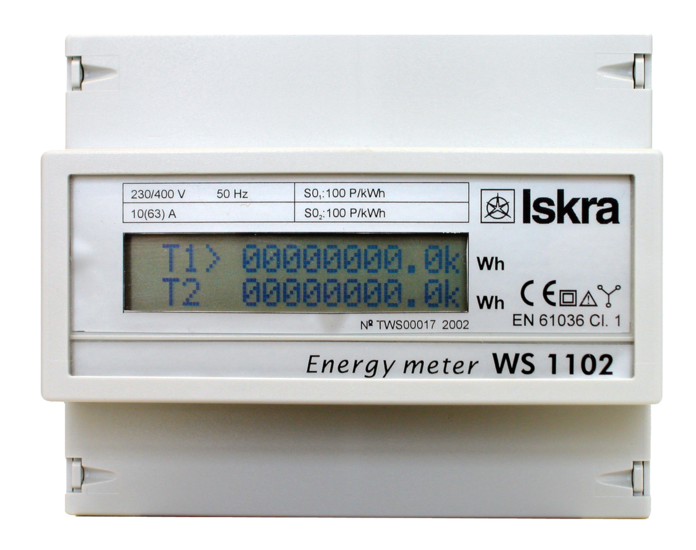

Energy Meters for DIN Rail Mounting
Energy meter for rail mounting are intended for measuring energy usage in industrial environments.
Communication converter
Communication adapters are used for connecting Iskra electrical measuring instruments, with basic communication capabilities, into network.

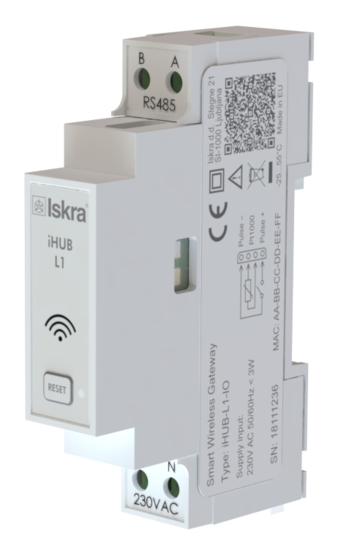

Communication gateway iHUB-L1
The iHUB-L1 communication gateway is intended to connect various equipment into communication network via Wi-Fi communication.

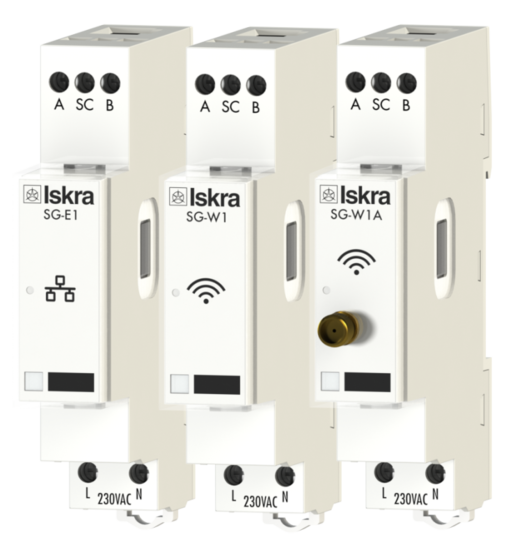

Smart Gateways
The SG series of smart gateways are intended to connect various equipment into communication network. The gateway has built-in two optical (IR) communication ports and the RS485 serial communication with the MODBUS protocol.

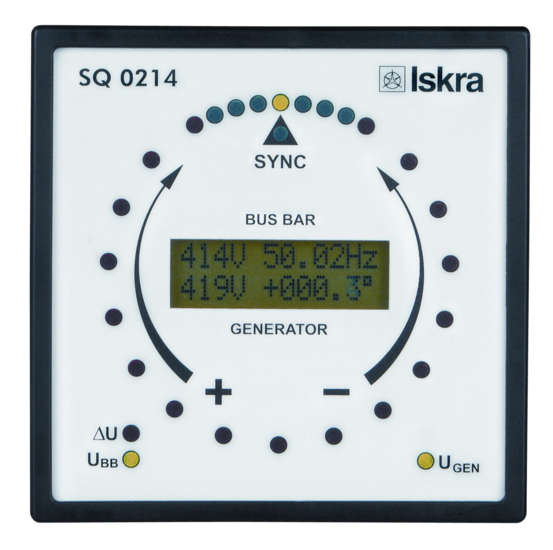

Synchronization meter SQ0214
synchronization meters SQ0214 measure phase differences between generator and bus bar, voltages and the frequencies of the two systems.

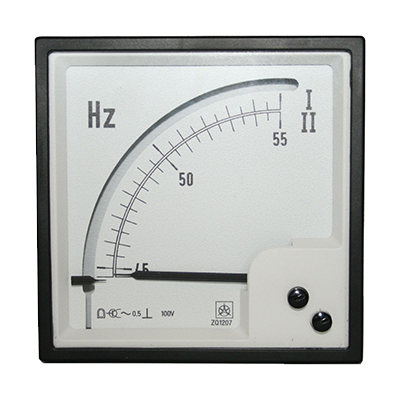

Sychronization meter ZQ1207
The ZQ 1207 or ZQ 1208 two-system frequency meter is used for measuring frequencies in two networks. The front frames of all the instruments measure 96×96 mm. Ship versions of the ZQ 1207 meters are available on request.

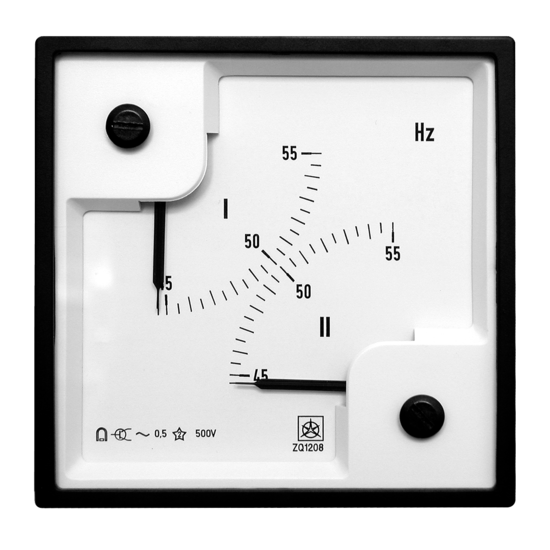

Sychronization meter ZQ1208
The FQ 1207 or FQ 1208 double voltage meter measures voltages in two networks. The front frames of all the instruments measure 96×96 mm.

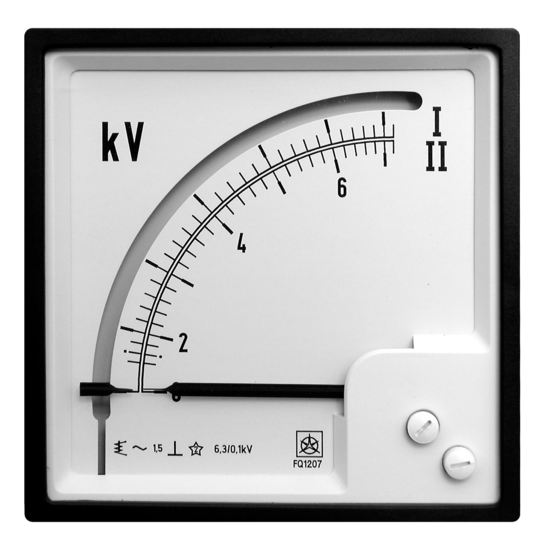

Sychronization meter FQ1207
The FQ 1207 or FQ 1208 double voltage meter measures voltages in two networks. The front frames of all the instruments measure 96×96 mm. Ship versions of the FQ 1207 meters are available on request.
Sychronization meter FQ1208
The FQ 1207 or FQ 1208 double voltage meter measures voltages in two networks. The front frames of all the instruments measure 96×96 mm.

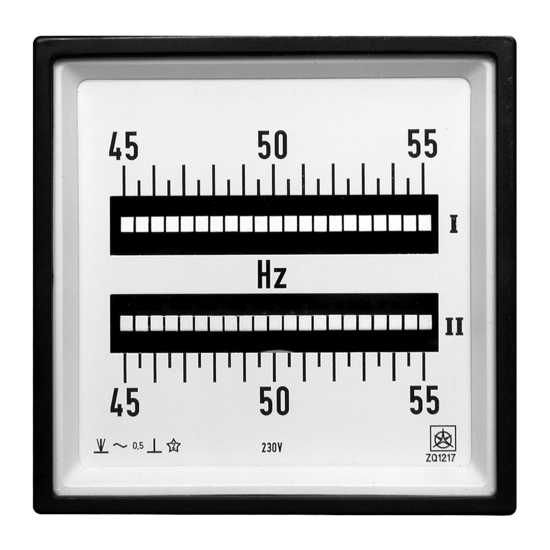

Reed Frequency Meters ZQ1x17
Reed frequency meters are intended for measurement of frequencies in the range from 45 Hz to 65 Hz. Two-system reed frequency meters are intended for measurement of two frequencies in the system for synchronisation. Their class is 0.5.

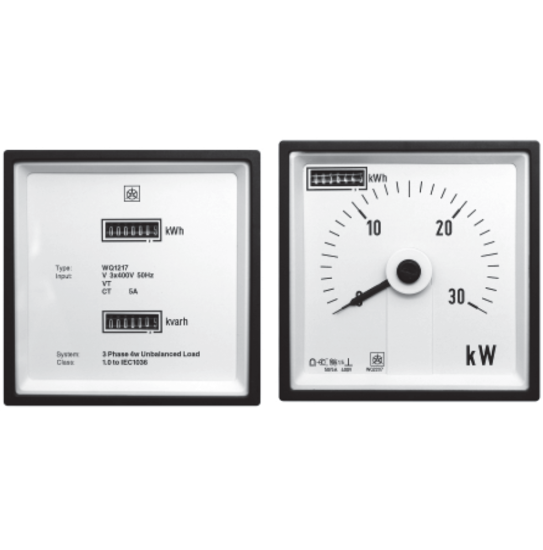

Energy Meters with Power Display
Our energy meters with power displays have housing for panel mounting. Some of them can also display momentary power in single and three phase systems with balanced or unbalanced loads.

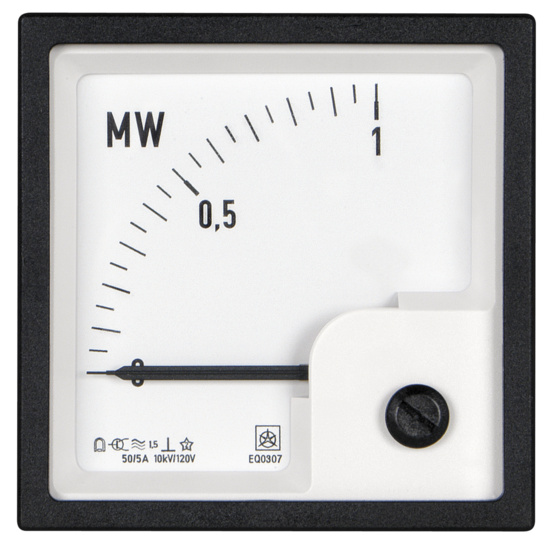

Active or Reactive Power Meters EQ
Power meters are electronic meters intended for measuring active or reactive power in single phase or three-phase networks, with balanced or unbalanced load.

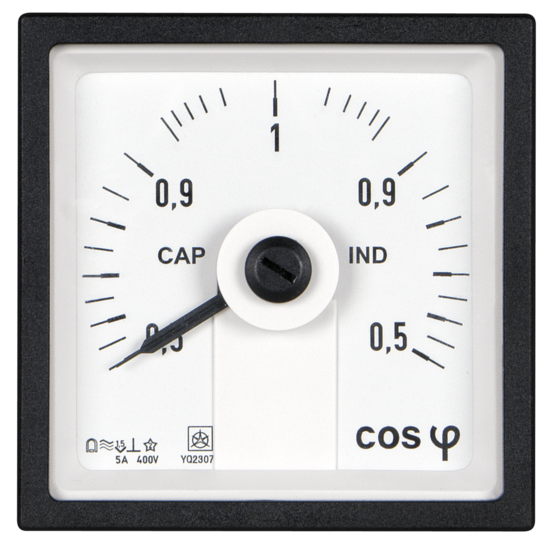

Power Factor Meters YQ
Power factor meters are intended for measurement of power factorb (cosϕ) in a three-phase three-wire network with a balanced load of phases or in a single phase network.
Reed Frequency Meters ZQ
Reed frequency meters are intended for measurement of frequencies in the range from 45 Hz to 65 Hz.

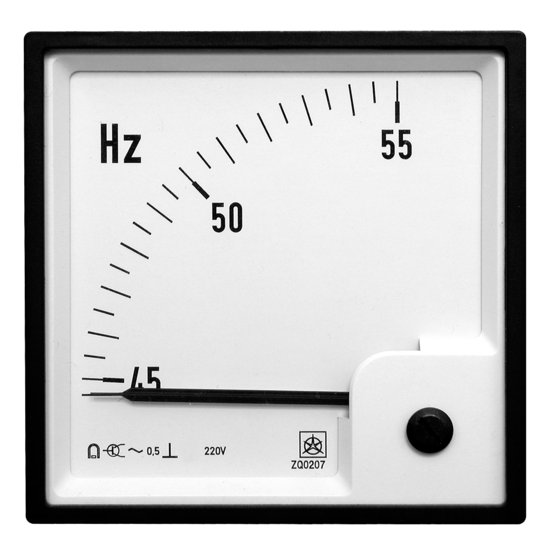

Pointer Frequency Meters ZQ
Pointer frequency meters are intended for measurement of frequencies in the range from 45 Hz to 65 Hz. The accuracy class is 0.5.

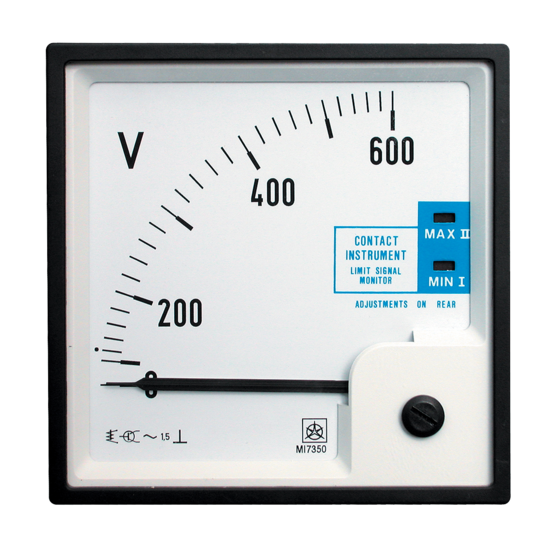

Meter with Limit Contact MI7350
The MI 7350 can signal minimal and maximal setting limits (MIN and MAX). The meter is provided with two output relays of 600 VA switching power.

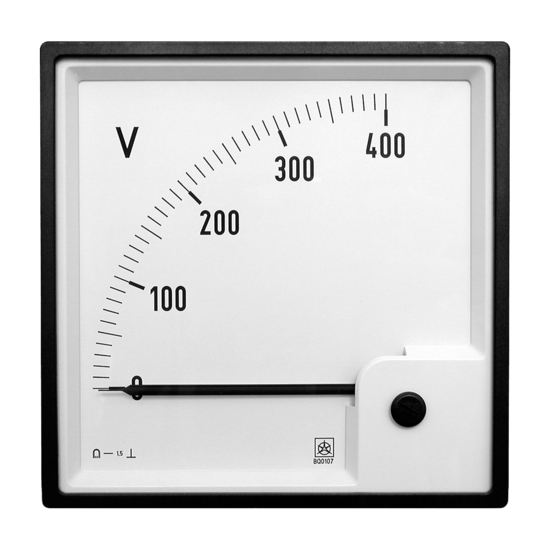

Meters for DC Voltage or Current with Moving Coil BQ
Meters with a moving coil are intended for measurement of direct currents or voltages.

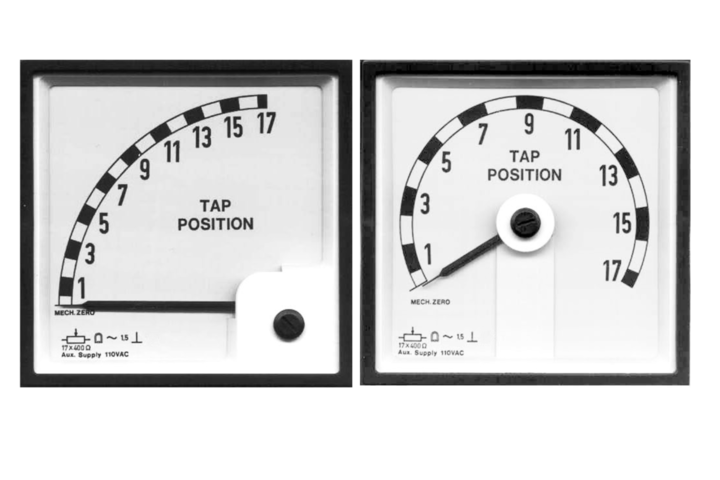

TAP Position Meters with Moving Coil CQ2207, CQ0207
TAP meters with a moving coil are intended for measurement of tap position with auxiliary supply AC voltage.
Meters for DC and AC Voltage or Current with Moving Coil and a Rectifier CQ
Meters with a moving coil and a rectifier are intended for measurement of AC currents or voltages in the frequency range from 40 Hz to 65 Hz (higher frequency range on request), where low meter consumption is required.

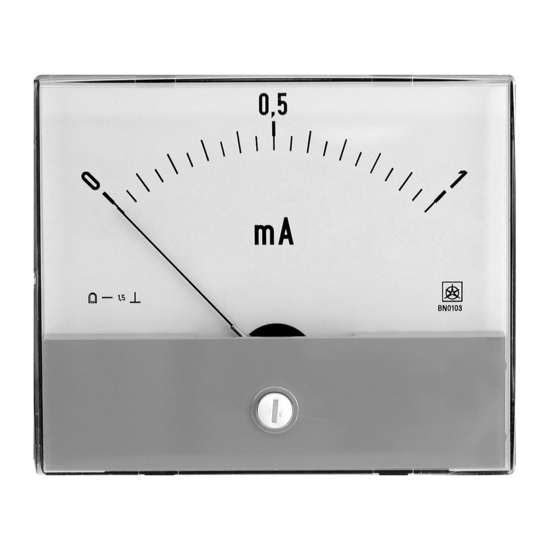

Meters for DC and AC Voltage or Current with Moving coil BN, CN
Owing to a special form and available colours, BN and CN meters are especially convenient for building into different control devices.

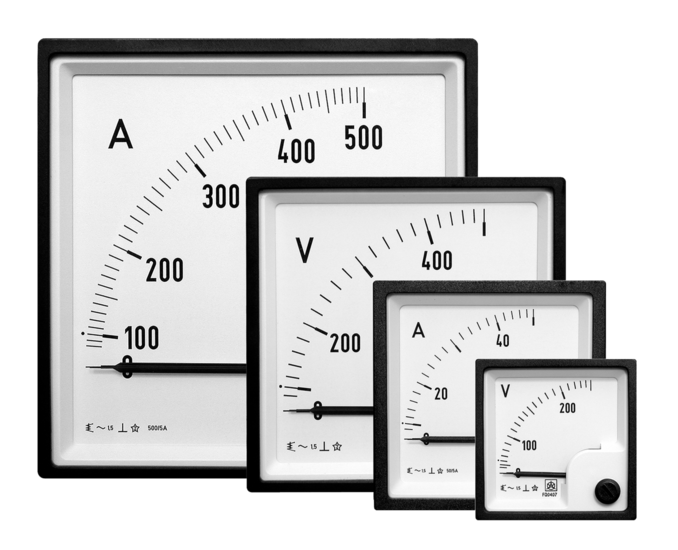

Meters for AC Voltage or Current with Moving Iron FQ
Meters with a moving iron are intended for measurement of AC currents or voltages of frequencies from 15 Hz to 100 Hz. They measure rms values independently on the signal form of current or voltage. The scale is interchangeable. The accuracy …

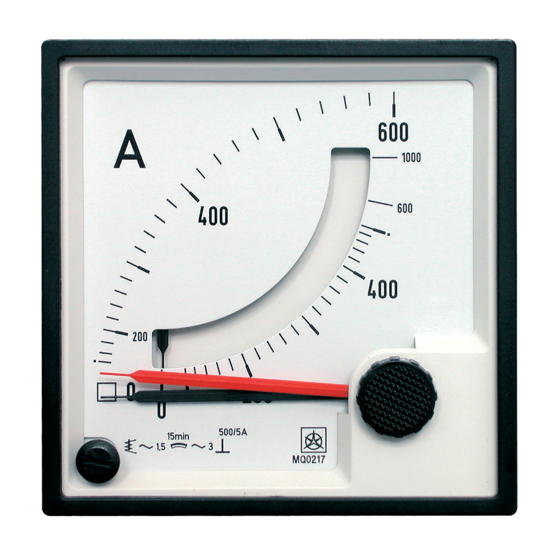

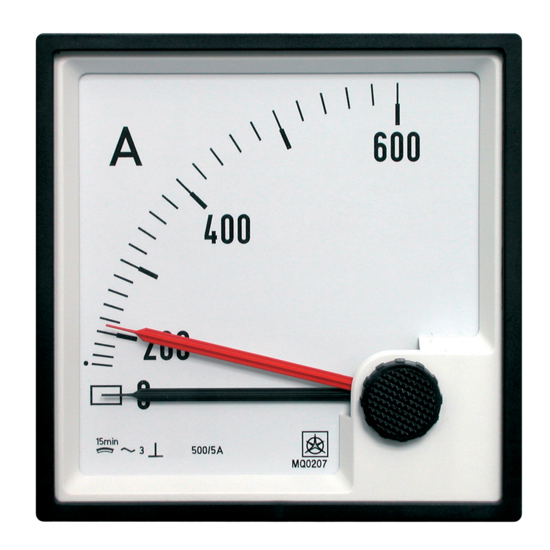

Bimetal Maximum Current Meters MQ
Bimetal maximum current meters with a bimetal measuring system are intended for testing the thermal load of transformers, cables, electrical machines, etc.
Combined Bimetal Maximum Current Meters MQ
Combined bimetal maximum current meters are provided with a built-in bimetal system and a system with a moving iron. The meters are intended for testing momentary and thermal load of transformers, cables, electrical machinery, etc.

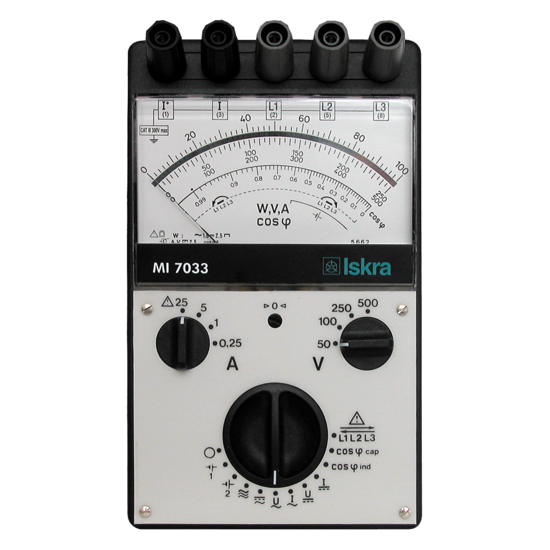

Portable Watt Meter MI 7033
Portable analogue multimeter MI7033 meets the majority of requirements for power measurement in repair shops, production premises and in laboratories

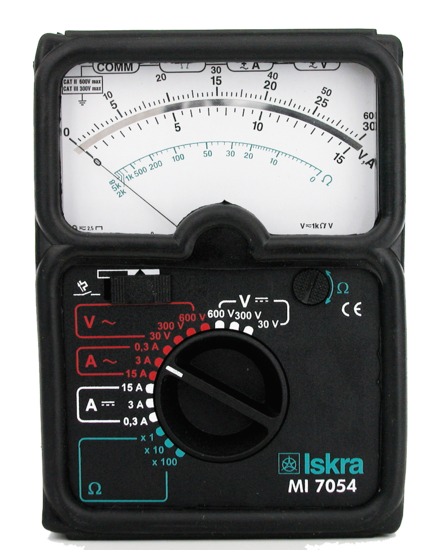

Portable Electric Meter MI 7054
Portable multimeter 7054 is especially convenient for repair shops, electric, radio, electronic professions and field work.
Portable Electric Meter MI 7056
Portable multimeter 7056 is especially convenient for repair shops, electric, radio, electronic professions and field work.

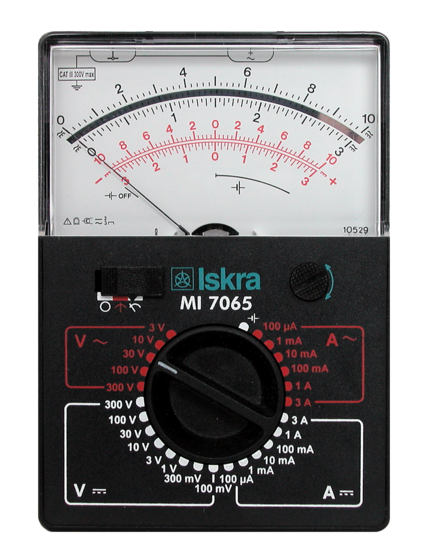

Portable Electric Meter MI 7065
Portable multimeter 7056 is especially convenient for repair shops, electric, radio, electronic professions and field work.

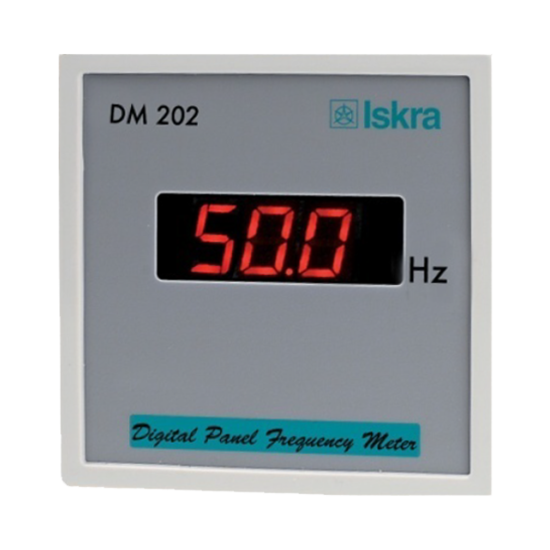

DM 202 - Digital Panel Frequency Meter
DM 202 Digital Panel Frequency meter measures system frequency. Meter shows frequency value in 3 digits.

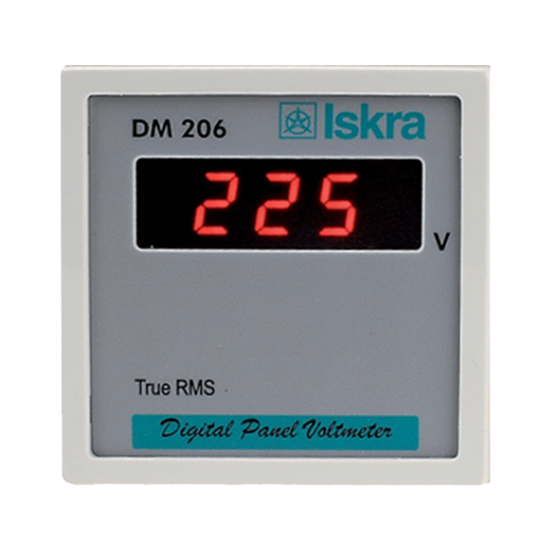

DM 206 - Digital Panel Voltmeter
DM 206 – Digital Panel Voltmeter measures very accurately, the voltage value of the any line (AC+DC) in true RMS. Any line can be measured between 0…500 V.
Digital Panel Voltmeter DM 208
Digitalni panel DM 206 – ampermeter meri natančno vrednost napetosti katerekoli linije (AC + DC) v pravem RMS-u. Vsako linijo lahko merite med 0…9999 A. Če števec odčita več kot 9999 A, se prikaže sporočilo o napaki.

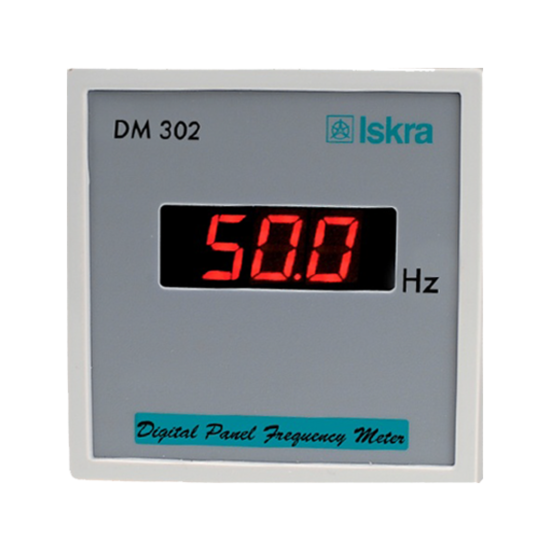

Digital Panel Frequency Meter DM 302
DM 302 – Digital Panel Freequency Meter measure system frequency. Meters show frequency value in 3 digits.

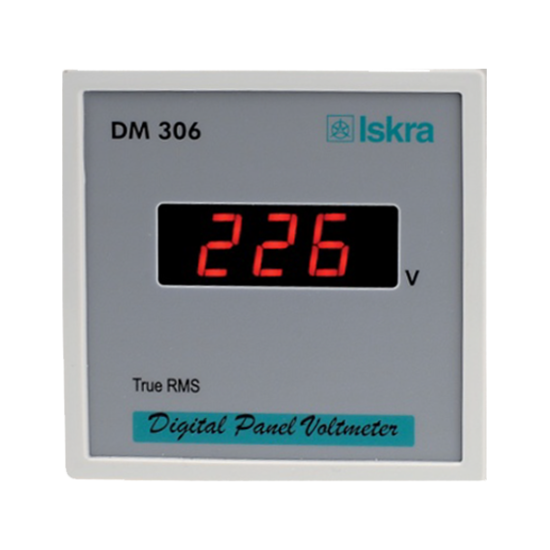

Digital Panel Voltmeter DM 306
DM 306 – Digital Panel Voltmeter measures very accurately, the voltage value of the any line (AC+DC) in true RMS. Any line can be measured between 0…500 V

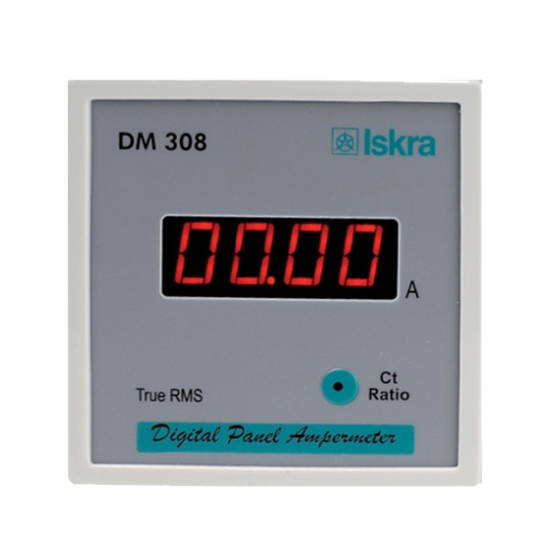

Digital Panel Ampermeter DM 308
DM 308 – Digital Panel Ampermeter measures very accurately, the current value of the any line (AC+DC) in true RMS. Any line can be measured between 0…9999 A. When the reading excesses 9999 A, it shows Err fault message.

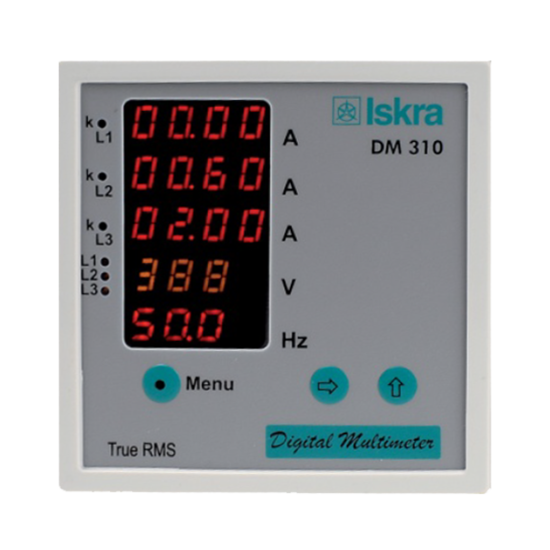

Digital Multimeter DM 310
DM 310 is very advanced multimeter which gives user precise readings in 4 digits and seperate CT ratio adjustments for flexible systems.

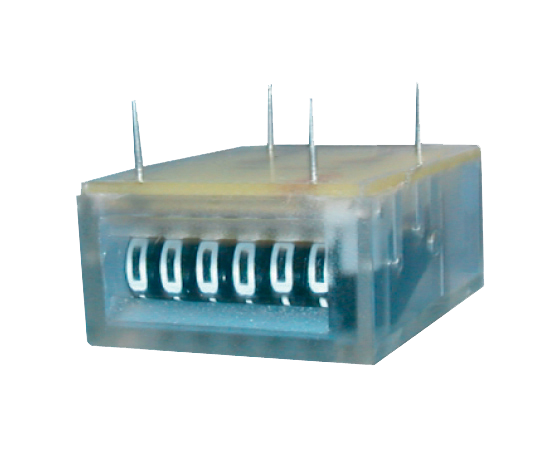

Pulse counters
Pulse counters are used to keep record of repetitive operations. Typical applications are event counting, quantity counting, coin handling etc.

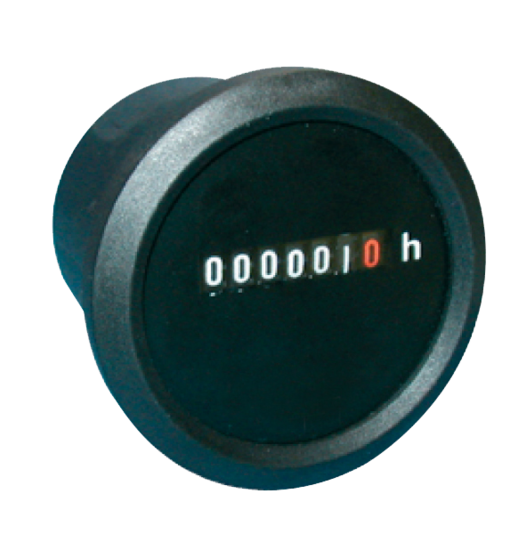

Hour meters
Hour meters show run time of machines, equipment and other devices. When you need accurate information for testing, maintenance or warranty purposes, choose from wide range of HK hour meters.

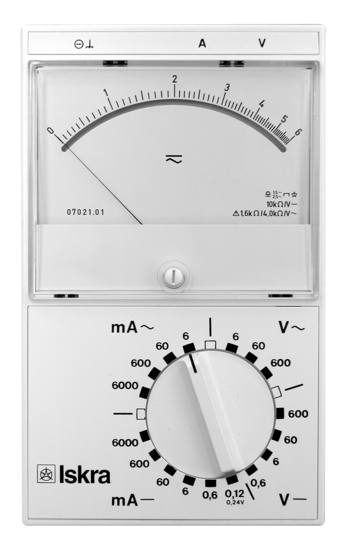

AC/DC Current Meter 07021.01
The 07021.01 is designed for measuring AC/DC currents and voltages; adequate for technical instruction but also for measuring at electro-technical equipment and electronics outside school.

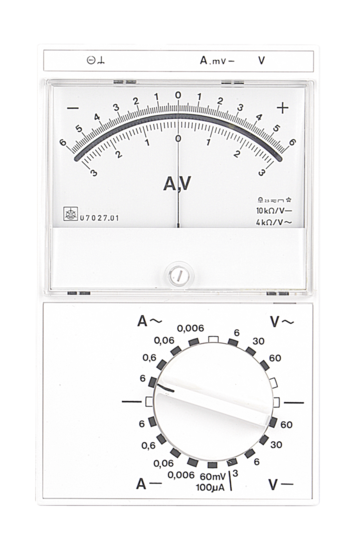

AC/DC Current Meter 07027.01
The 07027.01 is designed for measuring AC/DC currents and voltages. With the switch selector you can choose all measuring ranges.

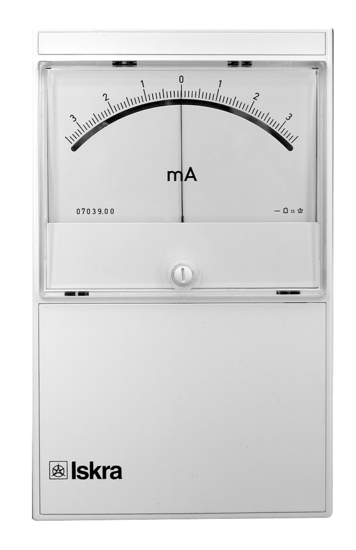

DC Current Meter 07039.00
The 07039.00 is designed for measuring small DC currents. The instrument is quite suitable for experiments in which the zero method is used, for example at Wheatstone bridge.

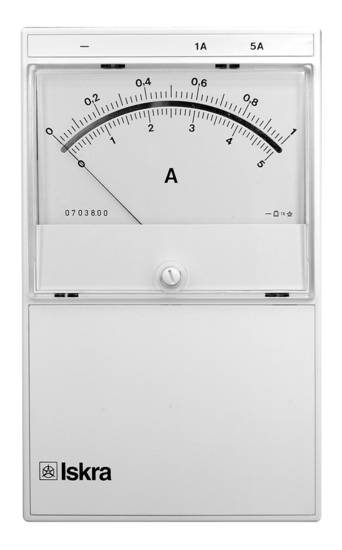

DC Current Meter 07038.00
The 07038.00 is designed for measuring DC currents and is suitable for exercises in which pupils use galvanic couples, batteries and low voltage sources. We suggest one instrument for work of two pupils.
DC Voltage Meter 07037.00
The 07037.00 is designed for measuring small DC voltages and is suitable for exercises in which pupils use galvanic couples, batteries and low voltage sources. We suggest one instrument for work of two pupils.

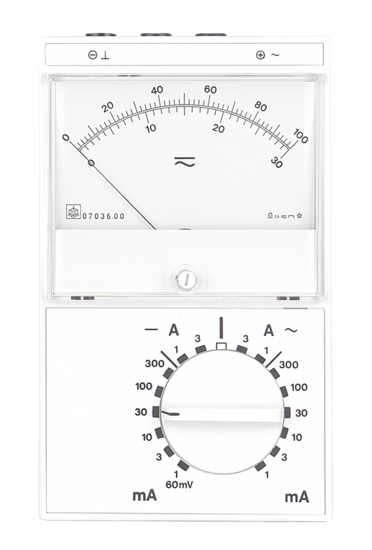

AC/DC Current Meter 07036.00
The 07036.00 is designed for measuring AC/DC currents. Together with our 07035.00 (link at 07036.00) voltmeter, it is adequate for basic and advanced experiments in the electronics and electro-technical field.

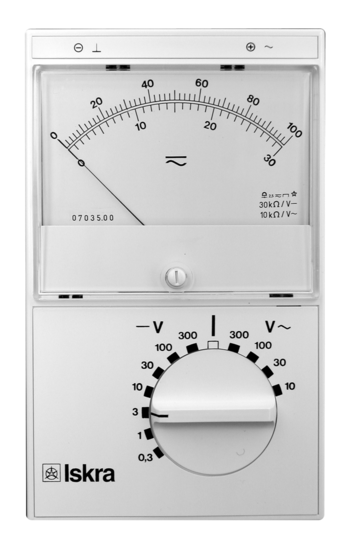

AC/DC Current Meter 07035.00
The 07035.00 is designed for measuring AC/DC voltages. With our ammeter 07036.00 (link at 07036.00) it makes a voltmeter set, suitable for basic and advanced electro-technical and electronics experiments at.

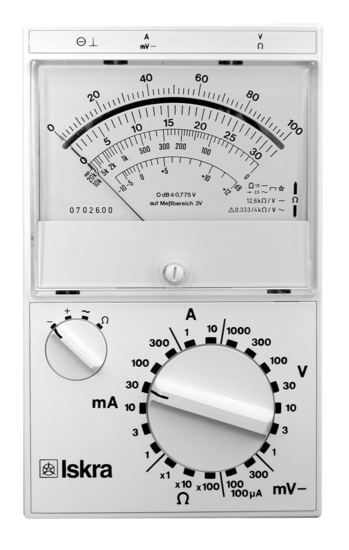

AC/DC Current Meter 07026.00
The 07026.00 is designed for measuring AC/DC currents, voltages and resistances. It has its own battery power supply.

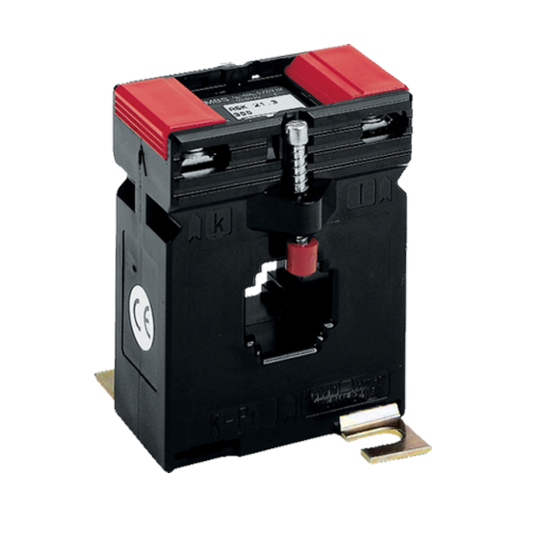

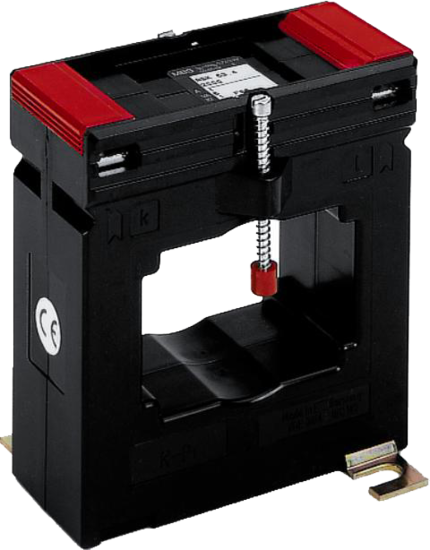

Current Measuring Transformers ASR, ASK, WSK
Measuring transformers ASR, ASK, WSK measure AC currents and are designed to convert high current into lower current value.

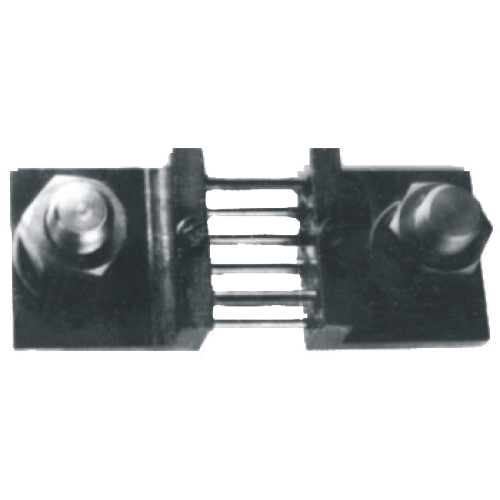

AR 0101
The AR 0101 separate shunt increases DC current ratings when connected to a meter with a moving coil.

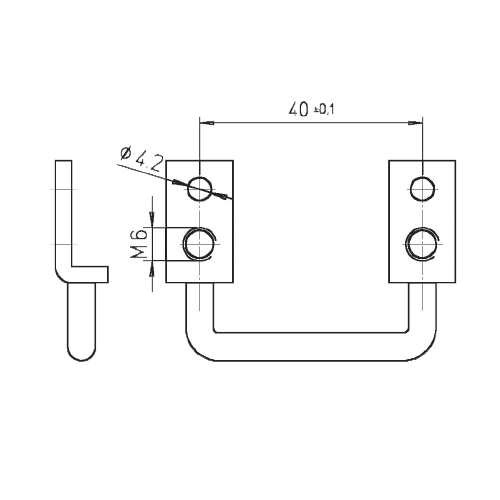

AR 0105
The dimensions of AR 0105 shunts are adapted to a meter’s connection contacts and can be easily fixed to them with M4 screws.
Current Measuring Transformers
The ASR, ASK and WSK current measuring transformers are used for measuring AC currents. The secondary current is 5A, rated frequency from 50 Hz to 60 Hz. The accuracy class is 1.
Monitoring Software MiSMART
The MiSMART three-tier middleware software is a perfect tool for utility companies, energy suppliers and other parties on both ends of a supply-demand chain.

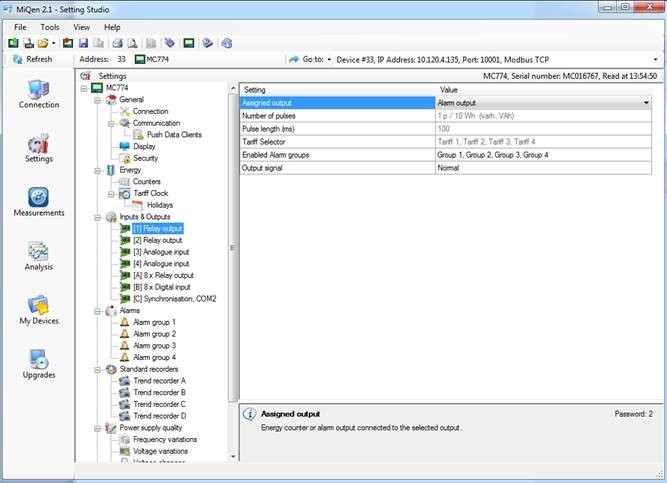

Monitoring Software MiQenMiQen
Setting Studio is a Microsoft Windows application, used to configure, manage and monitor Iskra d.d. measuring instruments and protection devices.
