Nexans brings energy to life through an extensive range of cables, Cable accessories and cabling solutions that transmit power and information to millions of people, communities and industries worldwide. Product range as follows.
MEDIUM VOLTAFE HEAT-SHRINKABLE TERMINATIONS AND JOINTS HEAT-SHRINKABLE SINGLE CORE/THREE CORE XLPE OUTDOOR TERMINATION
Heat-shrinkable terminations for polymeric single core /three core cables, are widely used by power utilities and in industrial applications. For use outdoors and exposed to prolonged sunshine and other weather conditions. Nexans Meets the requirements of CENELEC HD 629.1 and IEC 60502-4.
HEAT-SHRINKABLESINGLE CORE /THREE CORE XLPE INDOOR TERMINATION
Heat-shrinkable terminations for polymeric single core / three cables, are widely used by power utilities and in industrial applications. For use indoor in controlled environmental conditions.. Nexnas Meets the requirements of CENELEC HD 629.1 and IEC 60502-4.
HEAT-SHRINKABLE THREE CORE/SINGLE CORE XLPE STRAIGHT JOINT
For jointing three core polymeric single core / three core cable to be directly buried. The product is fully screened and fully submersible.Nexnas Meets the requirements of CENELEC HD 629.1 and IEC 60502-4.

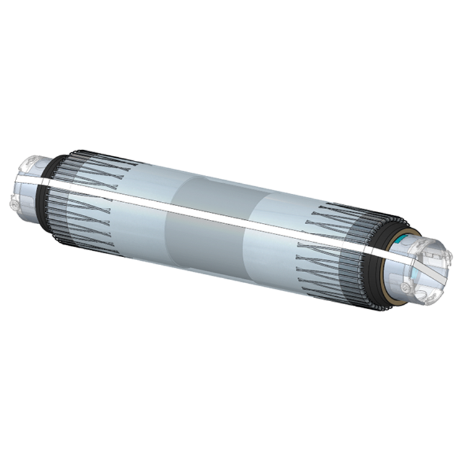

MEDIUM VOLTAGE COLD-SHRINKABLE TERMINATIONS AND JOINTS
Suitable for single core, paper or polymeric insulated cables up to 36 kV, these cold-shrinkable accessories set new standards in installation technique. All functions are integrated in single piece which is factory installed on plastic supporting tubes. After standard cable preparation, the pre-expanded accessory is positioned over the cable and shrunk by extracting the supporting tubes. Installation is considerably simpler and faster than with any other system presently available.

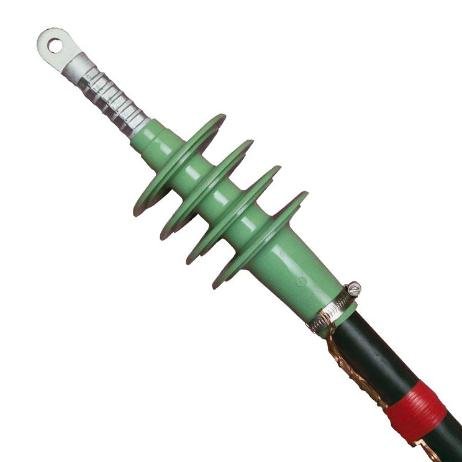

MEDIUM VOLTAGE SLIP-ON TERMINATIONS
Suitable for single core polymeric insulated cables up to 42 kV, this range of pre-molded slip-on terminations is made of silicone rubber. Terminations in silicone-rubber are single pieces and can be used for indoor and outdoor applications.

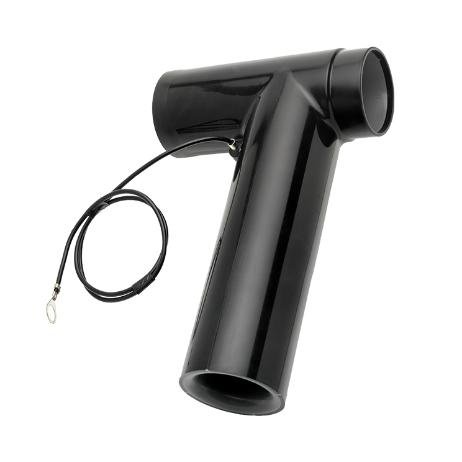

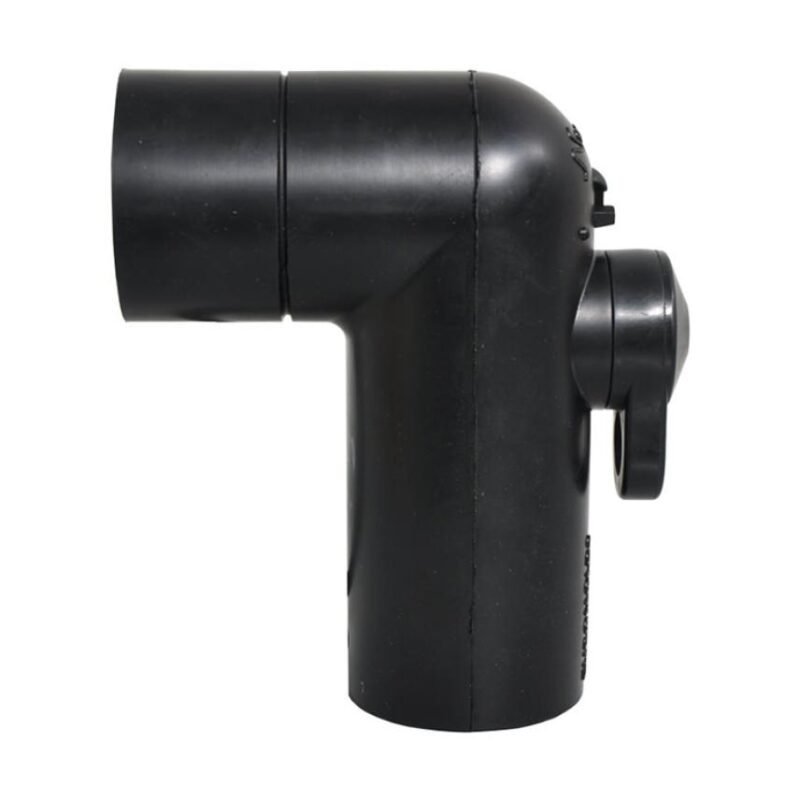

MEDIUM VOLTAGE SLIP-ON PREMOLDED SEPARABLE CONNECTORS
A range of pre-moulded separable connectors are available in EPDM rubber for plug-in or bolted connections up to 36 kV and 1250 A. Available in straight, elbow or “T” versions, these connectors offer a safe to touch connection to switch gear and transformers. Jumpers can be supplied with a combination of connectors and terminations at each end. An EPDM surge arrestor is available. Separable elbow/Tee connector (plug-in type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors…).Also connects cable to cable when using the appropriate mating parts.

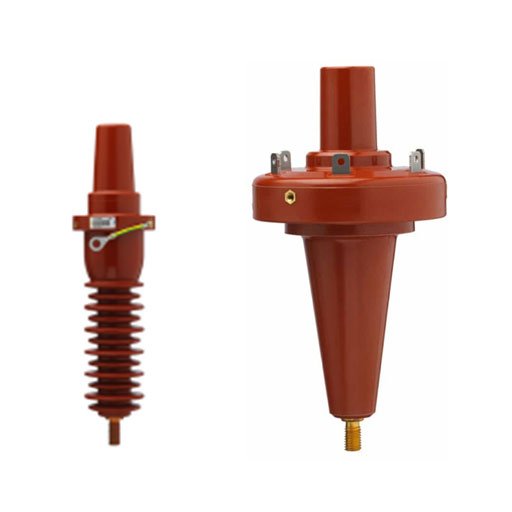

MEDIUM VOLTAGE EPOXY RESIN EQUIPMENT BUSHINGS
A large range of equipment bushings for in-oil, in-air or in-gas and for plug-in or bolted versions up to 36 kV and 1250 A. A variety of fixing flanges for different clamping (or welding) systems is available as well as plug-in type epoxy termination.
Electrical Characteristics - Up to 36 kV
Interface – A,B,C,D,E:
- 6/10 (12) kV
- 6.35/11 (12) kV
- 8.7/15 (17.5) kV
- 12/20 (24) kV
- 12.7/22 (24) kV
- 18/30 (36) kV
- 19/33 (36) kV
